PVC Wall Panel Profile Extrusion Line

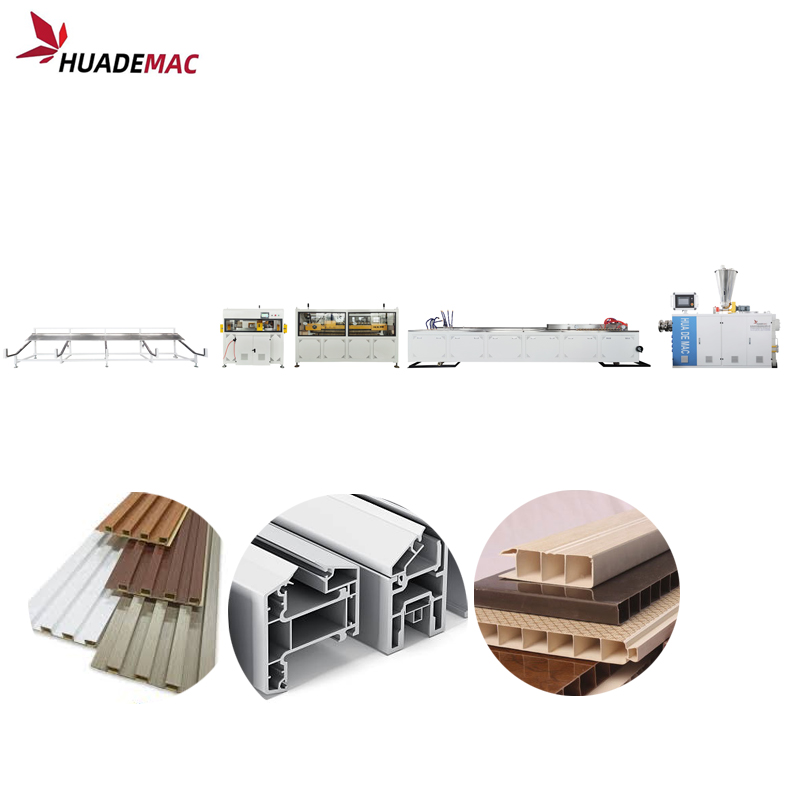

The typical layout for a profile system includes the following modules:

Conical twin screw extruder

Co-extruder

Calibration table

Caterpillar haul-off

Cutting units

Tilting table

Auxiliary equipments

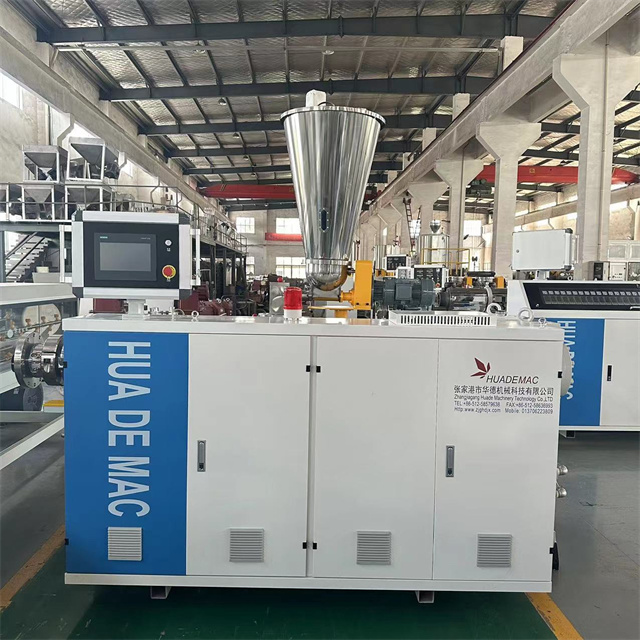

Conical Twin Screw Extruder

The SJSZ-series extruder is designed for the PVC profile application.

We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.

High flexibility in raw material combinations

Gentle and homogeneous plastifcation

Barrel with air cooling system

AC motors for low energy consumption

Control panel can be optional with PID temperature instrument or PLC touch screen

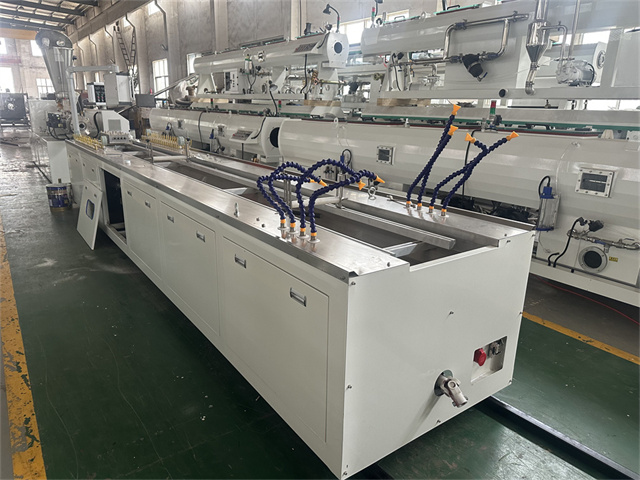

Calibration Table

Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts that are in contact with water is made of stainless steel

Low maintenance cost

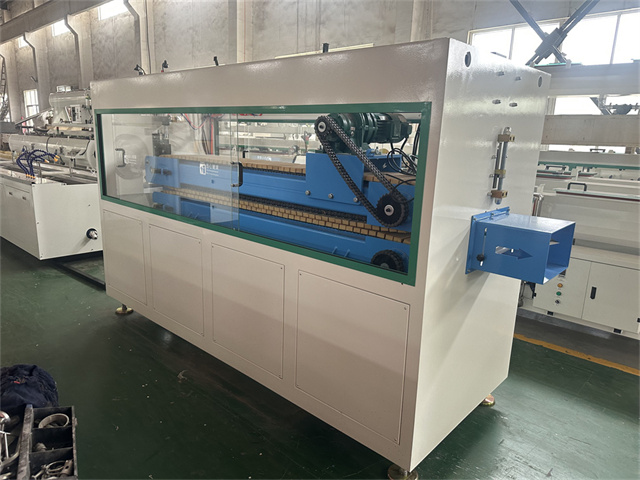

Caterpillar Haul-Off

On our caterpillar haul-off units, we provide the optimal solutions for the customer’s needs with the advantage of flexibility in pad dimensions and track lengths.

Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.

 Flexibility in pad dimensions

Two independent tracks with gearboxes

Speed adjustment by inverter

Cutting Units

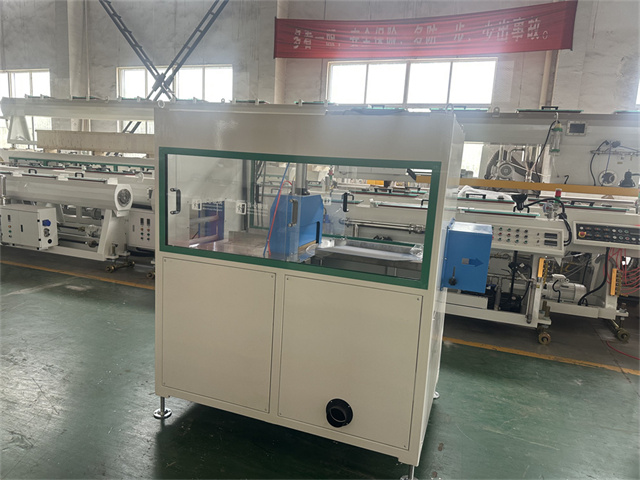

Extrusion offers two types of cutting units for profile applications:

Saw and guillotine cutting systems. Depending on the customer’s preference, we can install these units in our integrated haul-off and cutting combination or supply separately.

Tilting Table

Table material is stainless steel

Tilting system is pneumatic

Length can be modifed upon request

Depending on profle geometry, we can also offer roller-type tables
